200mm LED Traffic Light Module - Durable & Sunlight Resistant | Ideal for Traffic Light

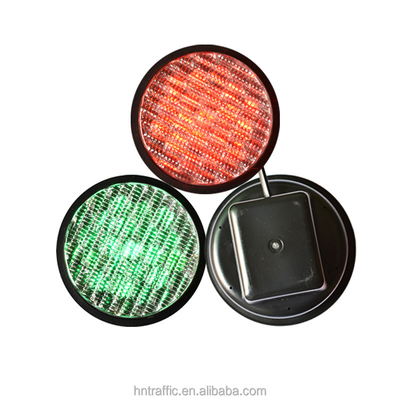

Large Image : 200mm LED Traffic Light Module - Durable & Sunlight Resistant | Ideal for Traffic Light

Product Details:

Place of Origin:	Henan, China
Brand Name:	HOAN

Contact Now

Detailed Product Description

Housing Material:	PC	Color:	Red Green Yellow
Size:	200mm	Light Source:	5mm Led Diode
Working Voltage:	DC12V	Brightness:	>4000cd
Certificate:	CE ROHS	Lifespan:	≥70,000 Hours
Waterproof:	IP 66	Warranty:	1Year

Shell	PC	IP rating	IP65
Ambient temperature:	-40℃~+80℃	Size	100/200/300/400mm customizable
Rated voltage	220 (V)	Lamp holder model	round
rated power	8 (W)	Warranty	1 year

Technical parameters of Ф300 red, yellow and green high-power wick

Red light: 9 LEDs, Φv: 30～50Lm, wavelength: 625～630nm, wick brightness: 570cd, power: ≤10W.

Yellow light: 12 LEDs, Φv: 20～50Lm, wavelength: 590～595nm, wick brightness: 425cd, power: ≤13W.

Green light: 9 LEDs, Φv: 40～70Lm, wavelength: 500～505nm, wick brightness: 950cd, power: ≤15W.

Working voltage: AC85V-265V, 60HZ/50HZ

Visual distance≥300m

Technical parameters of Ф300 red, yellow and green double lens wick

Red full plate: 91 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Yellow full disk: 91 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Green full disk: 91 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤9W.

Working voltage: AC176V-265V, 60HZ/50HZ

Visual distance≥300m

Technical parameters of Ф300 red, yellow and green full disk without lens wick

Red full disk: 168 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Yellow full plate: 168 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Green full plate: 168 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤15W.

Working voltage: AC176V-265V, 60HZ/50HZ

Technical parameters of Ф200 red, yellow and green double lens lamp wick

Red full plate: 61 LEDs, single brightness: 3500~5000mcd, wavelength: 625±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Yellow full disk: 61 LEDs, single brightness: 4000~6000mcd, wavelength: 590±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Green full plate: 61 LEDs, single brightness: 7000~10000mcd, wavelength: 505±5nm, left and right up and down viewing angles: 30°, power: ≤7W.

Working voltage: AC85V-265V, 60HZ/50HZ

Visual distance≥300

Q1. Can I have a sample order for traffic light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for traffic light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
